How i mesh a bin cage lid

[Member ID2]

Please note: only use power tools when confident and able to do so.

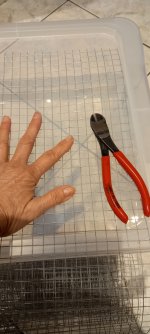

1. Cut mesh to required size. I use a wire cutter.



[Member ID2]

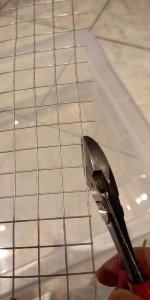

2. Cut the edges as close as possible.



[Member ID2]

3. Mark the 4 corners.



[Member ID2]

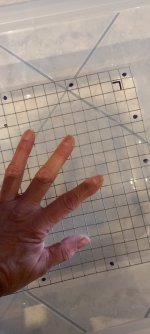

4. Mark the position of holes for the cable ties.



[Member ID2]

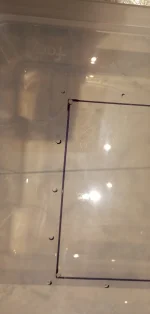

5. Mark the lines of the square to be cut out.
s



[Member ID2]

6. Drill the holes carefully. Do not apply pressure or the plastic could crack. Let the drill do its job.



[Member ID2]

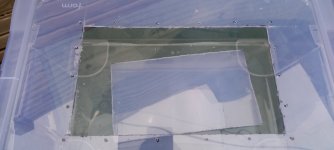

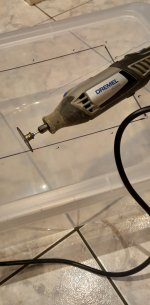

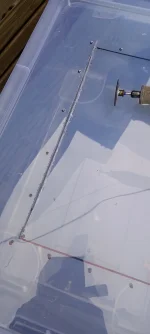

7. Cut the square. I use a Dremel with a pvc cutting disc attachment. Wear protective clothing and work outdoors or a workshop.



[Member ID2]

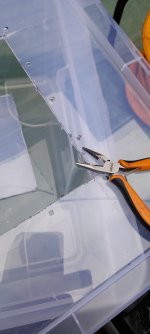

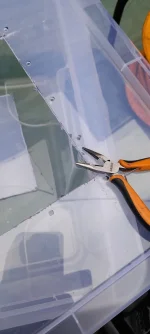

8. Remove any surplus plastic with pliers.



[Member ID2]

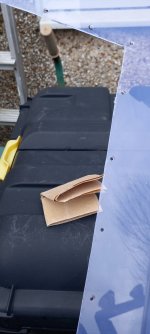

9. Sand edges smooth with sandpaper.



[Member ID2]

10. Decorative duck tape is optional.



[Member ID2]

11. Punch holes through the tape if used.



[Member ID2]

12. Place the mesh on the outside of the lid.



[Member ID2]

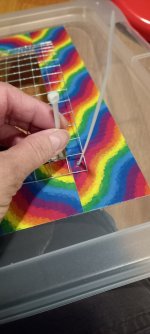

13. Fasten the 4 corners with cable ties as shown, loosely at first and then tighten when mesh is in the correct position.



[Member ID2]

14. Add the rest of the cable ties, tighten and cut off surplus.



[Member ID2]

15. Done.



[Maz]

Brilliant tutorial Beryl.



[elusive]

I’m sure that will really help lots of people.



[Riven]

Great tutorial Beryl. Very clear and easy to follow. May try and make my own one of the days.



[Banned Member 1]

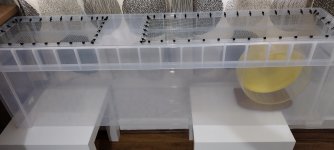

Thank you! I am getting the stuff together to convert a bin into a temporary enclosure and this is exactly what I needed

(I was planning to cut the hole for the mesh and then drill the holes for the cable ties and as soon as I saw that you say to do it the other way around realised why!)



[Banned Member 1]

This was difficult to do without any power tools!
(again this isn't intended as permanent housing)
